Freenove Control Board V5 (Compatible with Arduino UNO R4 WiFi Mini), Arm Cortex-M4 Microcontroller, Onboard ESP32-S3, LED matrix, USB-C Connector, Example Projects and Code Tutorial
Purchase Options:
This product has different versions.
V5 WiFi has onboard ESP32-S3 module and 12x8 red LED matrix, V5 Mini does not.
Overview:
Enhanced and improved, this latest upgraded board is armed with a powerful 32-bit microcontroller.
Brace yourself for increased processing power, expanded memory, and a whole new level of on-board peripherals.
We provide free technical support to help you with any questions and problems.
Main Features:
* Latest version
Upgrade to Arm Cortex-M4 Microcontroller with 48 MHz main core clock speed, 256 KB flash and 32 KB RAM.
* Compatibility
Fully compatible with Blue Rev4 board; some code and libraries may not be compatible with Blue Rev3 board.

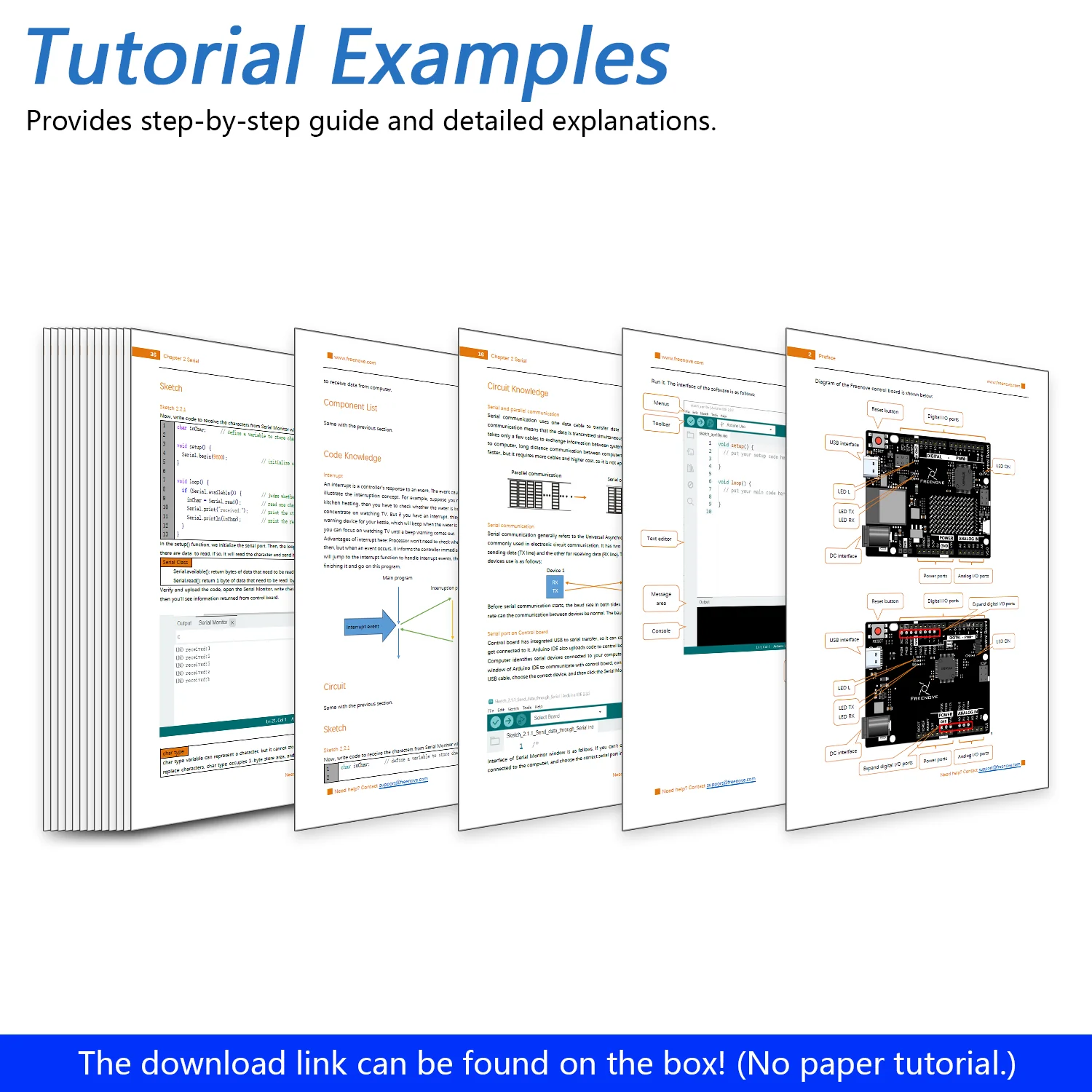

* Detailed tutorial
Comes with detailed tutorial and complete code. (Download needed, no paper tutorial.)

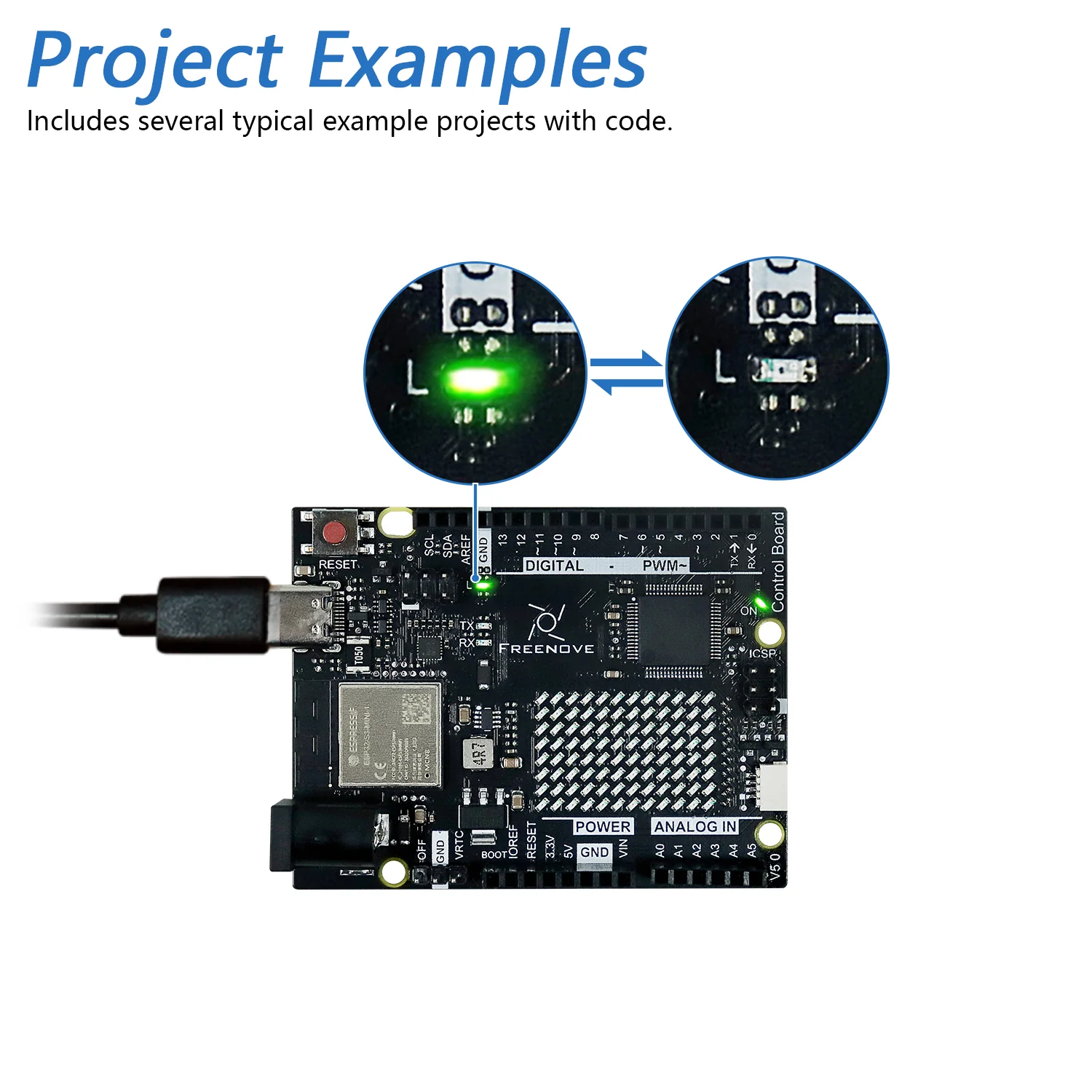

Including several typical projects with code and explanations.
You can download them before purchasing:
http://freenove.com/fnk0096
* Easy to use
Just connect the board to your computer (installed IDE and driver) with the USB cable to program it.
* Get support
Our technical service team is always ready to answer your questions.

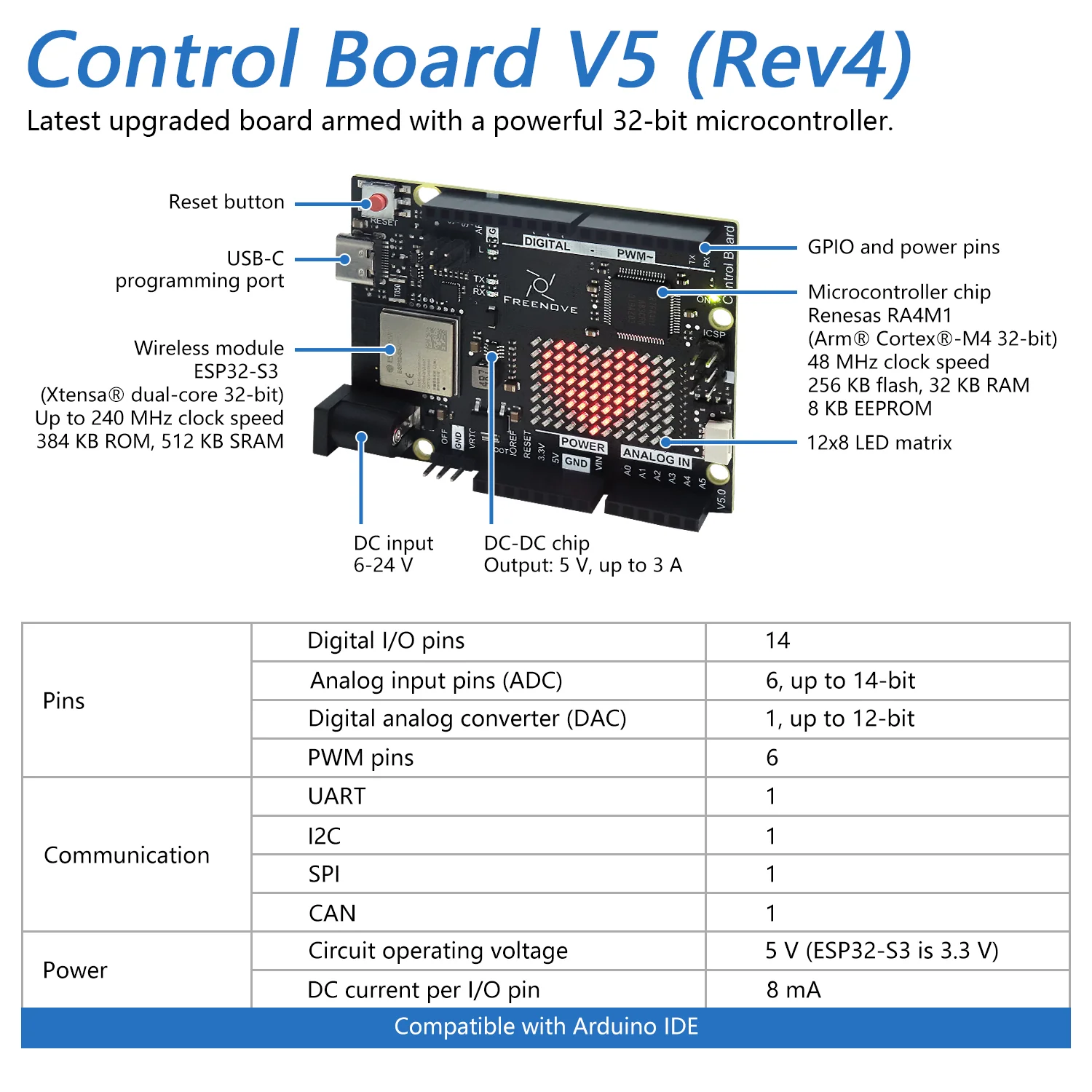

Technical Specifications:
It includes everything needed to support the microcontroller; simply connect it to a computer with a USB cable to get started.
* Note: Only V5 WiFi has onboard ESP32-S3 module.
| Microcontroller | Renesas RA4M1 (Arm Cortex-M4) | |
| Pins | Digital I/O pins | 14 |
| Analog input pins | 6 | |
| DAC | 1 | |
| PWM pins | 6 | |
| Communication | UART | 1 |
| I2C | 1 | |
| SPI | 1 | |
| CAN | 1 | |
| Power | Circuit operating voltage | 5 V (ESP32-S3 is 3.3 V) |
| Input voltage (VIN) | 6-24 V | |
| DC current per I/O pin | 8 mA | |
| Clock speed | Main core | 48 MHz |
| ESP32-S3 | up to 240 MHz | |
| Memory | Main core | 256 KB flash, 32 KB RAM, 8 KB EEPROM |
| ESP32-S3 | 384 KB ROM, 512 KB SRAM | |

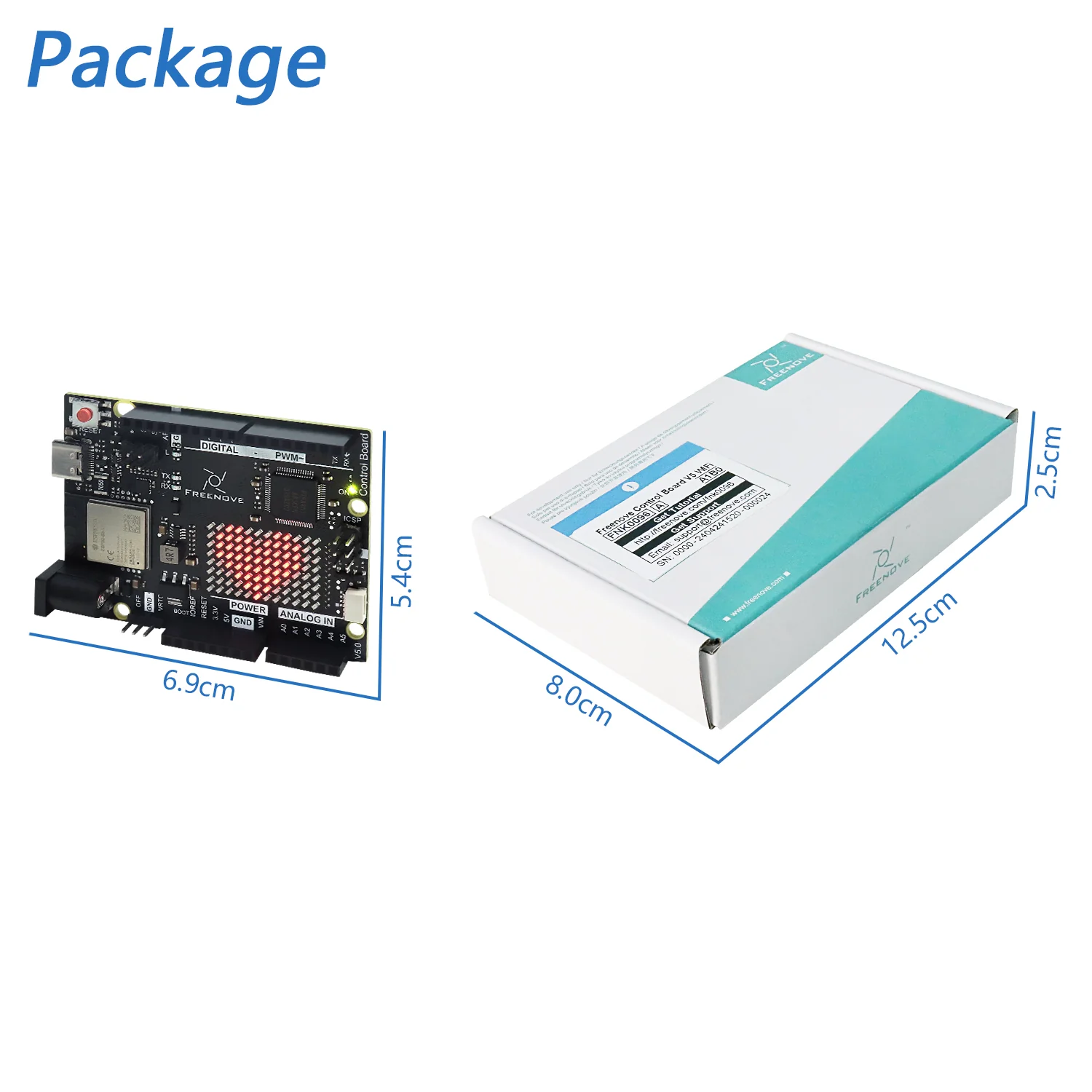

| Dimensions | Width | 69 mm |
| Weight | 54 mm | |

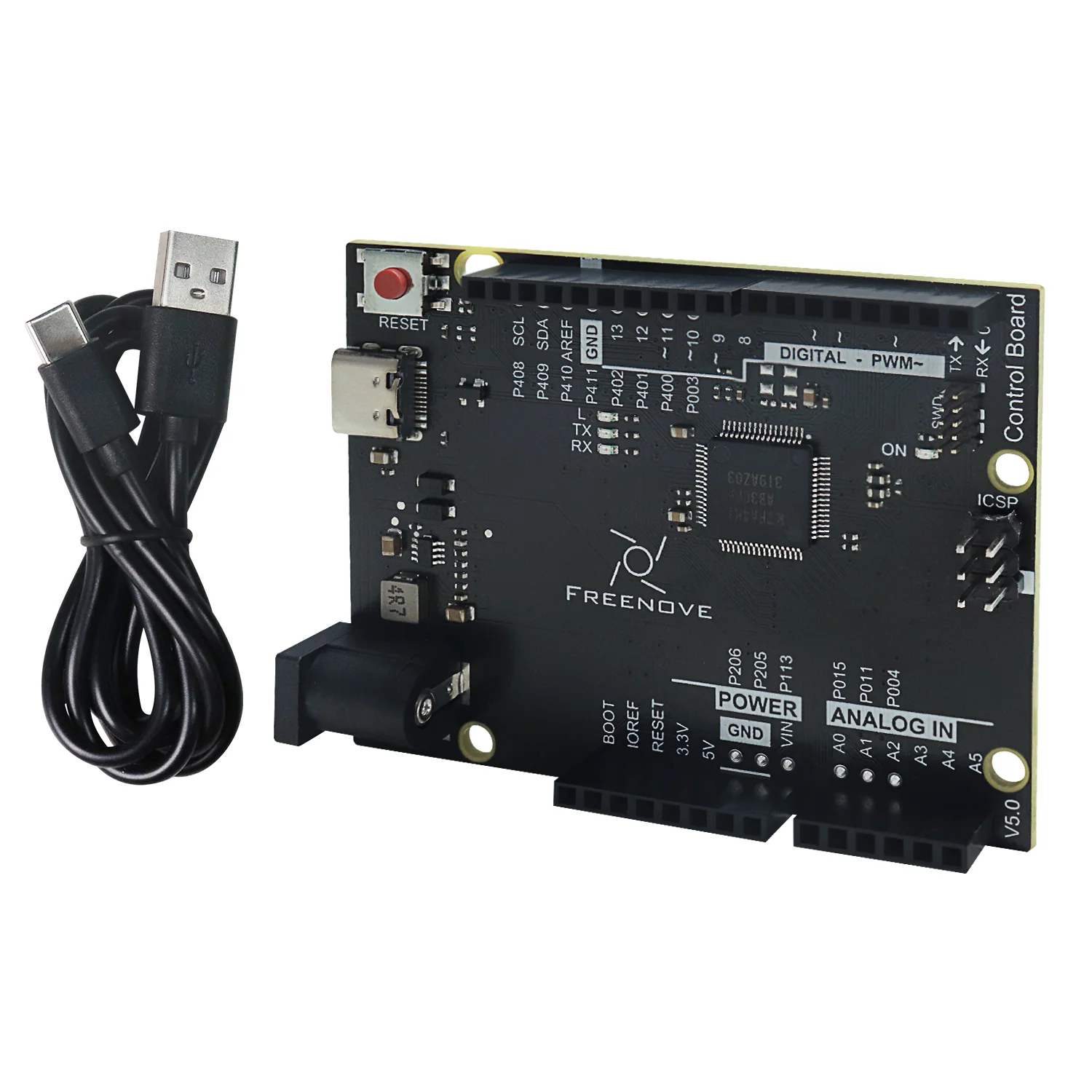

Package Includes:
1* Freenove control board V5
1 x USB A to C cable
